Conforms to IS1589-1976

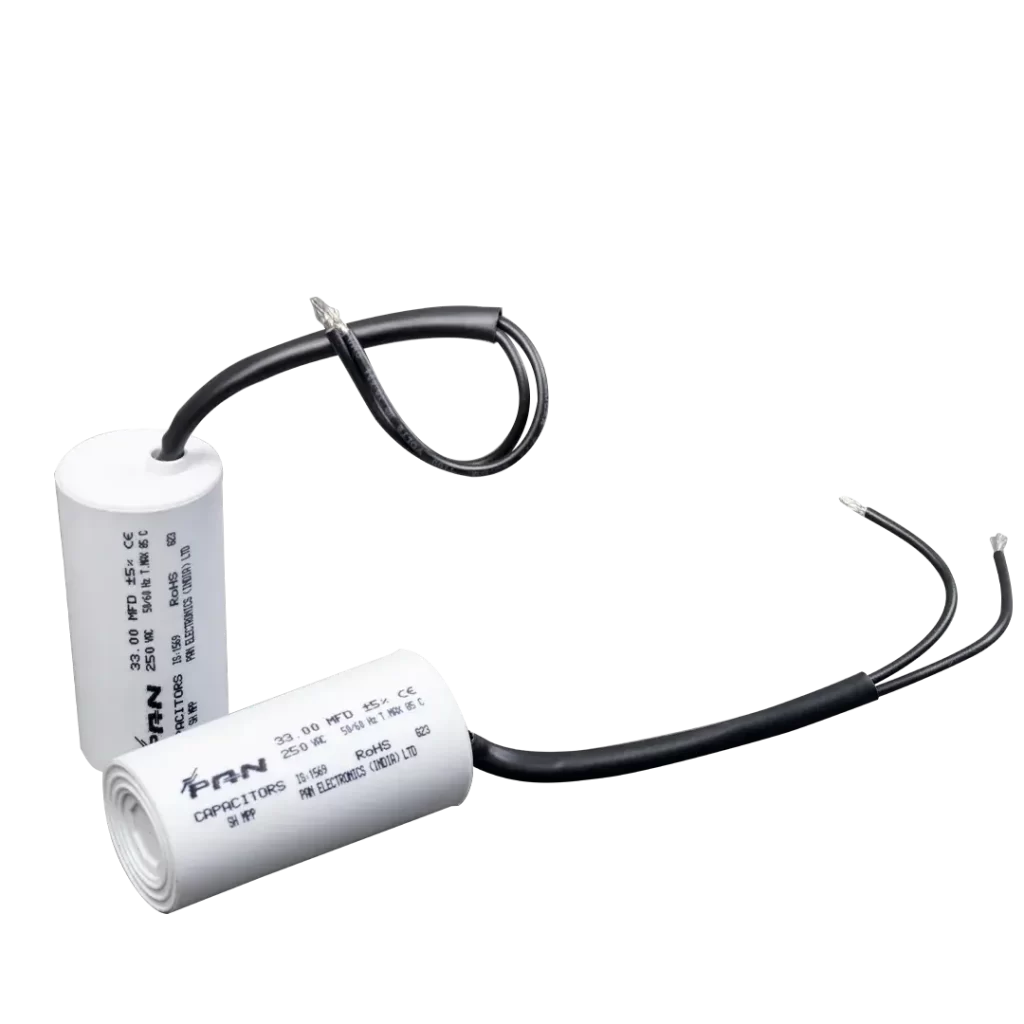

Lighting Capacitors

Range :4.00 MFD TO 60.00 MFD

Available in :Dry Type

Lighting capacitors are used in Fluorescent Fittings, Street Lanterns and with other High Intensity Discharge Lamps in parallel connection. PAN Electronics offers lighting capacitors for various applications, such as HID Lighting Ballast. Our Lighting capacitors offer a high dependability and working life needed in the lighting applications. The small dimensions and low-profile design of the capacitors make them ideal for electronic ballast applications.

Features

Can be applied to 250VAC- 50HZ-60HZ AC Power System
Long life expectancy
Low dissipation factor, less than .002 in 50HZ
Robust construction in Aluminium container
Low DPPM in field
Stable capacitance
Low energy consumption
MPP Film technology with Self-healing

Applications

Lighting Fixtures
HID Lamp fixtures
Street Lights etc.

Detailed Specification

Range:	4.00 MFD TO 60.00 MFD
Capacitors Tolerance:	±5%
Operating Temperature Range:	-25 + 85°C
Rated Frequency:	50-60HZ
Construction:	Dry Type

Dielectric:	Polypropylene Film
Terminal:	PVC Insulated Multistrand
Approvals & Standards:	TUV - CE Certified, ISO 9001:2015
Safety/Operating Class:	P0

Mechanical Specifications

Capacitance Mfd	Tolerance +/ - %	Rated voltage	Frequency HZ	Operating temperture	Dimension DxH
4.00	5	250	50-60	-25 + 85°C	28x52
8.00	5	250	50-60	-25 + 85°C	30x52
10.00	5	250	50-60	-25 + 85°C	30x52
15.00	5	250	50-60	-25 + 85°C	35x71
20.00	5	250	50-60	-25 + 85°C	35x71
33.00	5	250	50-60	-25 + 85°C	35x71
42.00	5	250	50-60	-25 + 85°C	40x71
