MPP Type Capacitors - PAN Electronics India

Explore our range of capacitors

Motor Start Capacitors

Specifications

Range 30.00 MFD TO 160.0 MFD which is equivalent to 40/60 MFD To 300/350

Voltage 275VAC

Features

  • Can be applied to 275VAC / 50-60HZ AC Power System
  • Long life expectancy
  • Low dissipation factor
  • Low DPPM in field
  • Stable capacitance
  • MPP Film technology with Self-healing
  • Environment friendly with NON-PCB Encapsulation – REACH & RoHS Certified

Motor Run Capacitors

Specifications

Range 1.00 MFD TO 80.0 MFD

Voltage 450VAC

Features

  • Can be applied to 450VAC - 50/60HZ AC Power System
  • Long life expectancy
  • Low dissipation factor
  • Low DPPM in field
  • Stable capacitance
  • MPP Film technology with Self-healing
  • Environment friendly with NON-PCB Encapsulation -REACH & RoHS Certified
  • High safety with segmented film
  • Burst proof design (P2 Over pressure disconnector)

Power Factor Correction Capacitors Box Type

Specifications

Range 1KVAR TO 25KVAR in Single Unit availability in a compact modular type

Voltage 525VAC

Features

  • MS Body construction for LV application
  • Non-PCB jelly oil & Dry type encapsulation
  • 3-Phase Delta connection
  • MPP film technology with Self-Healing Properties
  • Over-pressure Disconnector
  • Over current withstand capability - 1.8 times of rated current
  • Available in Standard & Heavy duty 1-25KVAR Single Unit in 525VAC
  • Compact size and light weight
  • Capable of floor mounting & wall mounting

Power Factor Correction Capacitors Cylindrical

Specifications

Range 1KVAR TO 25KVAR available in Single Unit

Voltage 525VAC

Features

  • Compact cylindrical construction for LV Applications
  • 3-Phase Delta connection
  • Non-PCB jelly oil & Dry type encapsulation
  • MPP film technology with Self-Healing properties
  • Over-pressure Disconnector
  • Double Di-electric technology to withstand high voltage
  • Over current withstand capability - 1.8 times of rated current
  • Available in standard duty 1-25KVAR in 525VAC
  • Available in Heavy duty 5-25KVAR in 525VAC
  • Compact size and light weight
  • Capable of floor mounting & wall mounting

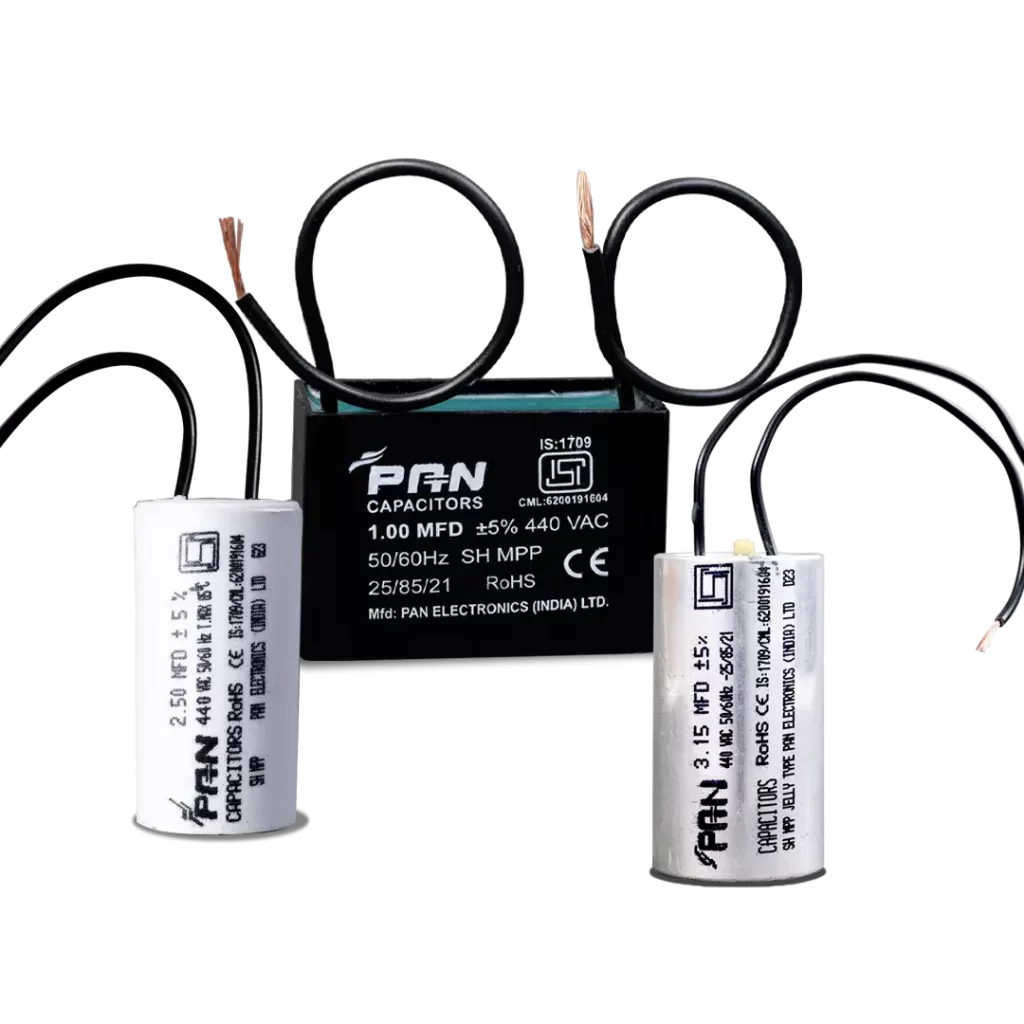

Fan Capacitors

Specifications

Range 1.00 MFD TO 4.0 MFD

Voltage 440VAC

Features

  • Can be applied to 440V, 50/60HZ AC Power System
  • AC rated
  • Long life expectancy
  • Low dissipation factor
  • Low DPPM in field
  • Stable capacitance
  • Self-healing

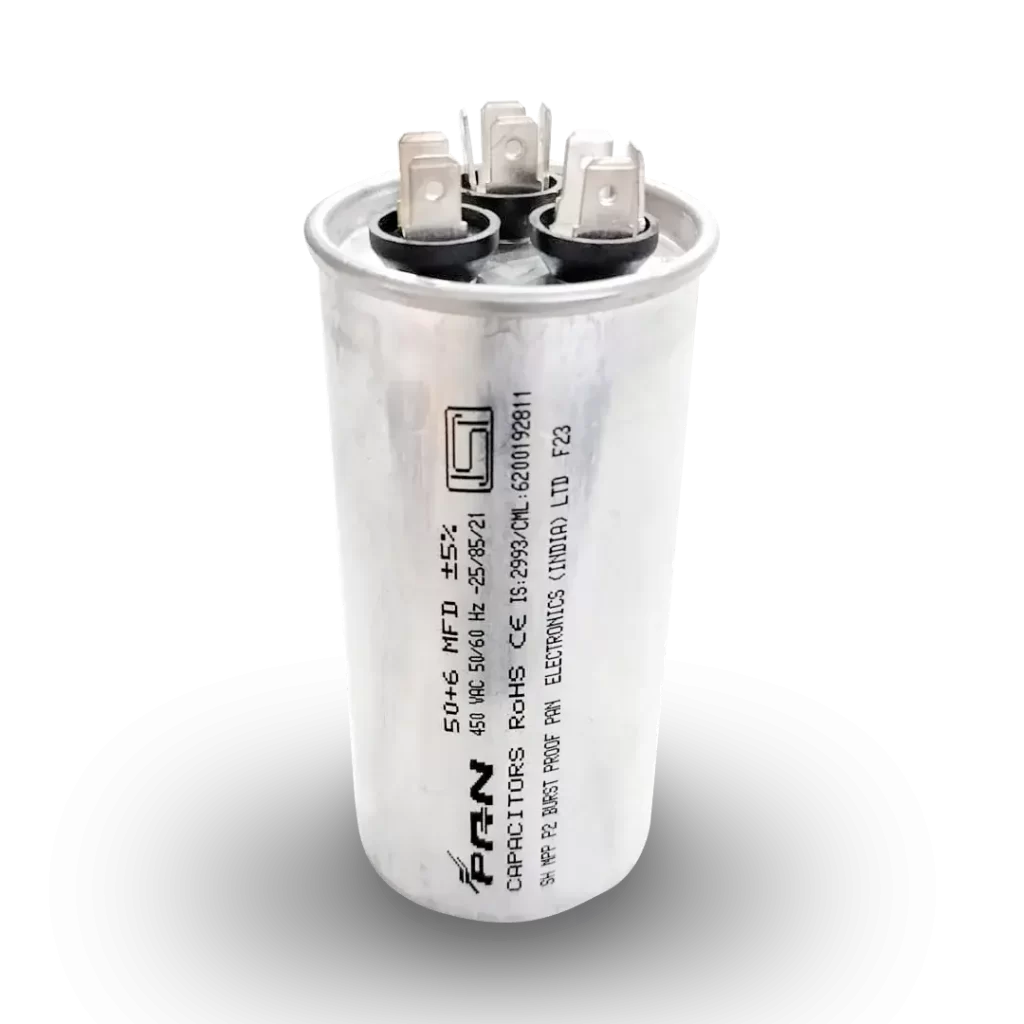

Air Conditioning Capacitors Dual Capacitors

Specifications

Range 25+2 TO 60 +10 MFD

Voltage 450VAC

Features

  • Can be applied to 450VAC/ 50- 60HZ AC Power System
  • Long life expectancy
  • Low dissipation factor
  • Low DPPM in field
  • Stable capacitance
  • Low energy consumption
  • MPP Film technology with Self-healing
  • Burst proof design (P2 Over pressure disconnector)

Washing Machine Capacitors Dual Capacitors

Specifications

Range 5.3+2 MFD TO 12+6 MFD

Voltage 450VAC

Features

  • Can be applied to 450VAC/ 50HZ-60HZ AC Power System
  • Long life expectancy
  • Low dissipation factor
  • Low DPPM in field
  • Stable capacitance
  • Low energy consumption
  • MPP Film technology with Self-healing

Lighting Capacitors

Specifications

Range 4.00 MFD TO 60.00 MFD

Voltage 250VAC

Features

  • Can be applied to 250VAC- 50HZ-60HZ AC Power System
  • Long life expectancy
  • Low dissipation factor, less than .002 in 50HZ
  • Robust construction in Aluminium container
  • Low DPPM in field
  • Stable capacitance
  • Low energy consumption
  • MPP Film technology with Self-healing

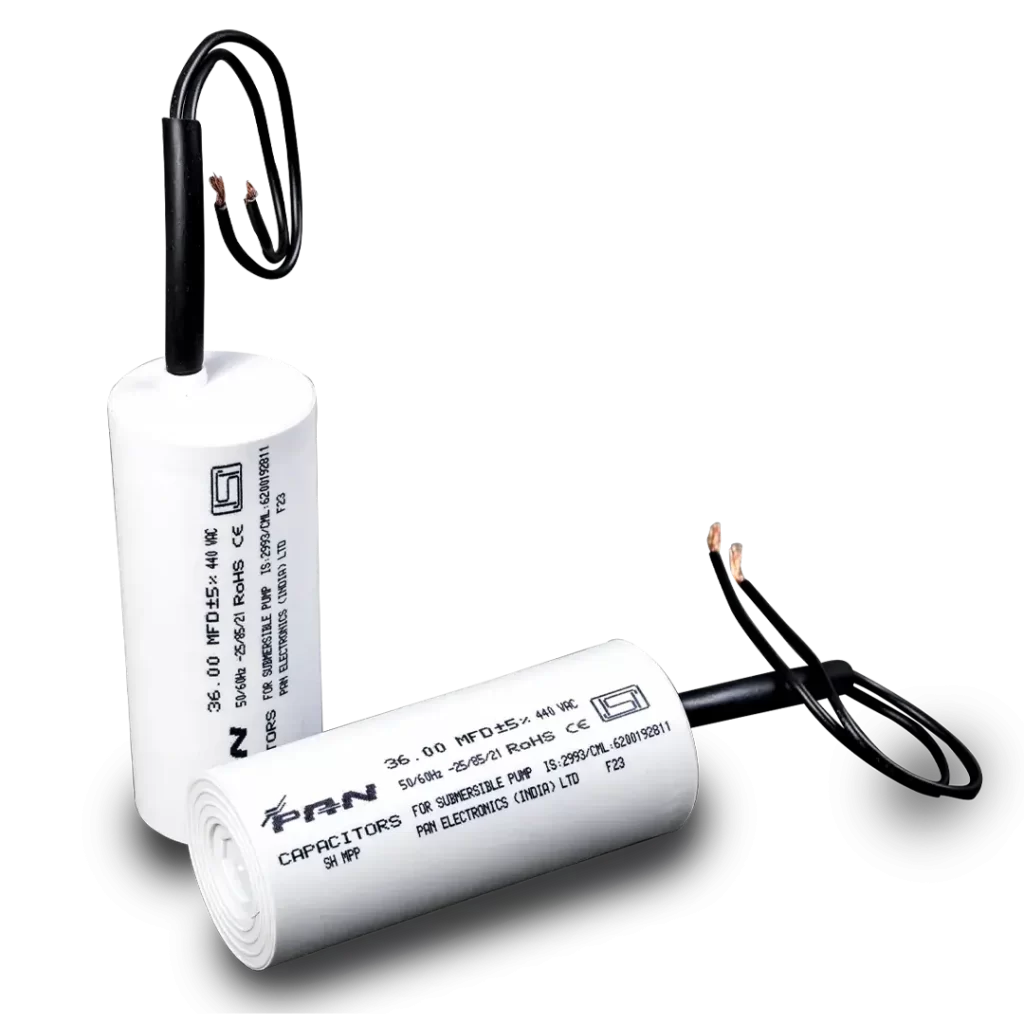

Submersible Pump Capacitors

Specifications

Range 25MFD - 100MFD

Voltage 450VAC

Features

  • Can be applied to 250-450VAC /50/60HZ AC Power System
  • Long life expectancy
  • Low dissipation factor
  • Low DPPM in field
  • Stable capacitance
  • MPP Film technology with Self-healing
  • Environment friendly with NON-PCB Encapsulation – REACH & RoHS Certified
  • High safety with segmented film
