Capacitor Specification

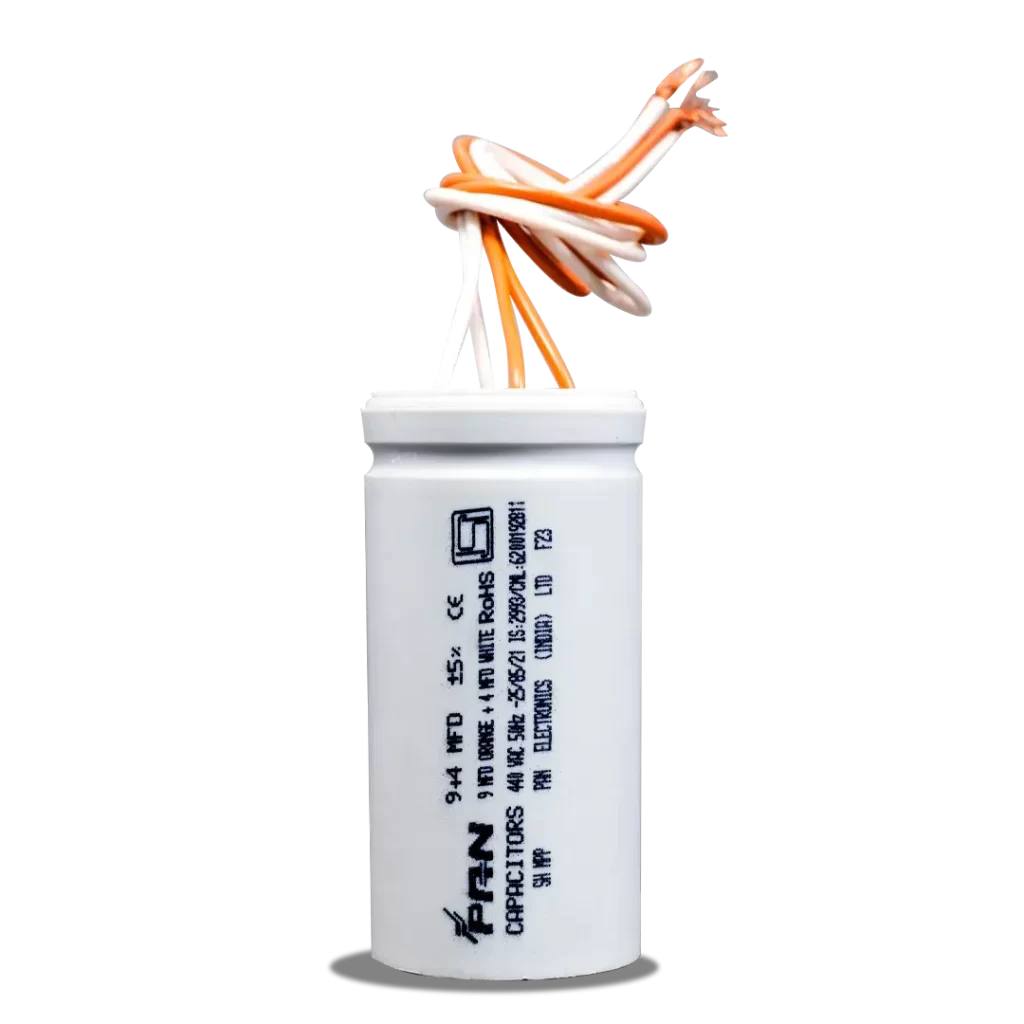

Washing Machine Capacitors Dual Capacitors

Range: 5.3+2 MFD TO 12+6 MFD

Available in: Dry Type in both PP And Aluminium can in Two/Four Wires

PAN Electronics offers top-of-the-line washing machine dual capacitors designed to provide reliable and efficient performance. Our capacitors are specifically crafted to withstand the harsh operating conditions of washing machines and have been rigorously tested for their durability, safety, and long-lasting performance.

Conforms to IS:2993, IEC60252,EN60252

ISI certificate TUV certificate

CML: No. 6200192811

Features

  • Can be applied to 450VAC/ 50HZ-60HZ AC Power System
  • Long life expectancy
  • Low dissipation factor
  • Low DPPM in field
  • Stable capacitance
  • Low energy consumption
  • MPP Film technology with Self-healing

Applications

  • General SineWave Single phase motor run washing machine

Detailed Specification

Range 5.3+2 MFD TO 12+6 MFD
Capacitors Tolerance ±5%
Operating Temperature Range -25 + 85°C
Rated Frequency 50-60HZ
Construction Dry Type in both PP And Aluminium can in Two/Four Wires
Dielectric Polypropylene Film
Terminal PVC Insulated Multistrand RoHS Wire
Approvals & Standards ISI Approved CML: No. 6200192811, TUV - CE Certified
Safety Operating Class P0

Mechanical Specifications

Capacitance Mfd Tolerance +/- % Rated Voltage Frequency HZ Operating Temperature Dimension DxH
5.3+2.1 5 450 50-60 -25 + 85°C 40x71
7+ xx 5 450 50-60 -25 + 85°C 40x71
8+ xx 5 450 50-60 -25 + 85°C 40x71
9+ xx 5 450 50-60 -25 + 85°C 40x71
10+ xx 5 450 50-60 -25 + 85°C 40x71
11+ xx 5 450 50-60 -25 + 85°C 40x71
12+ xx 5 450 50-60 -25 + 85°C 40x71

*Design & Specifications can be customised to customer requirements.
